Running Uptime Kuma in a Docker Container with NFSv4 Storage

Introduction

In this guide, I’ll walk you through setting up Uptime Kuma, a self-hosted monitoring tool, in a Docker container using NFSv4 for persistent storage. This setup is part of my homelab, where I experiment with containerization and various technologies.

Prerequisites

Before starting, ensure you have the following:

• NFS Server: I’m using TrueNAS on an HP EliteDesk.
• Docker Host: My Docker server runs on a separate HP EliteDesk.

Step 1: Export an NFS Share

Begin by exporting an NFS share from your NFS server. In my case, I exported the directory /mnt/pool0/nfs/docker-volumes from TrueNAS.

Next, SSH into your Docker server and mount the NFS share. For example:

sudo mount -t nfs4 lilmt.qth.nv9p.com:/mnt/pool0/nfs/docker-volumes /mnt/nfs

Once mounted, create a directory for Uptime Kuma’s persistent data:

mkdir -p /mnt/nfs/uptimekuma-data

This directory will store all the container’s data.

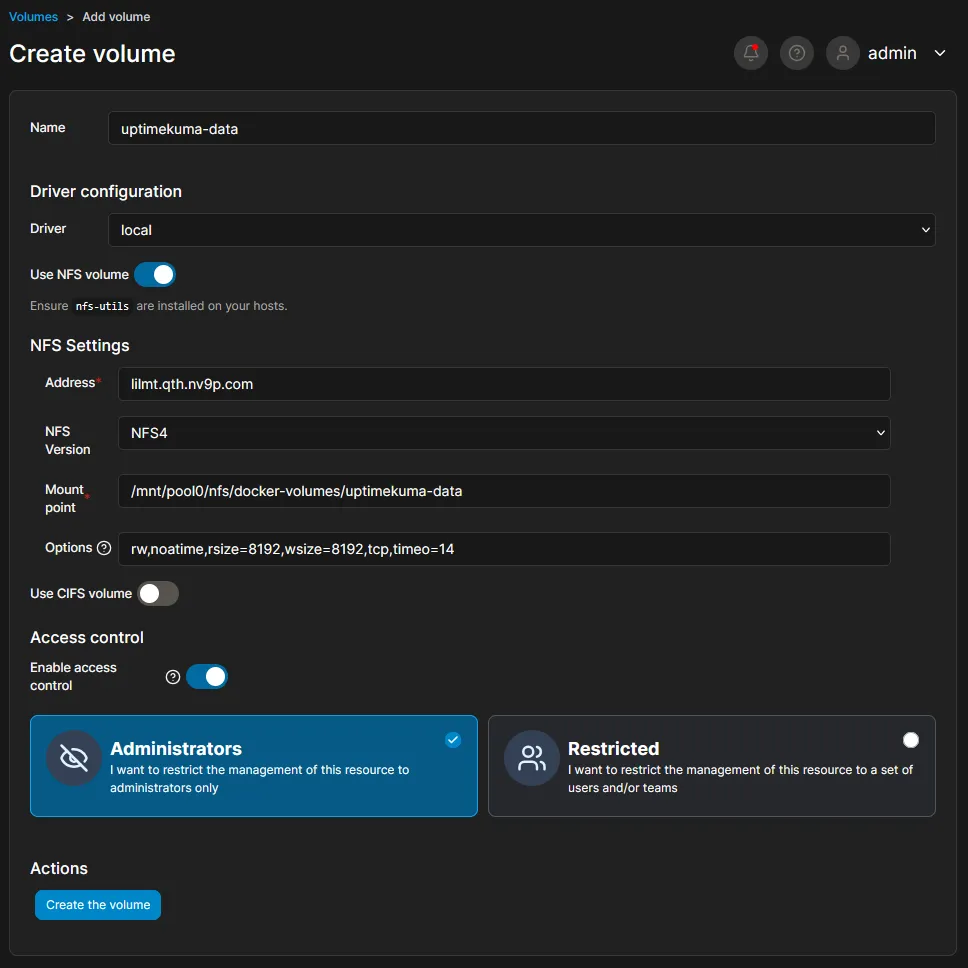

Step 2: Create a Volume in Portainer

I use Portainer to manage my Docker containers. To create a volume:

1. Access the Portainer web interface.
2. Navigate to Volumes and click Add Volume.
3. Fill in the NFS server details, including the mount point (/mnt/nfs/uptimekuma-data), and click Create the volume.

Step 3: Deploy the Uptime Kuma Container

Now, create the Uptime Kuma container:

1. Go to the Containers section in Portainer and click Add Container.
2. Name the container and use the official Uptime Kuma image: louislam/uptime-kuma.
3. Under Network, map port 3000 on both the host and container.

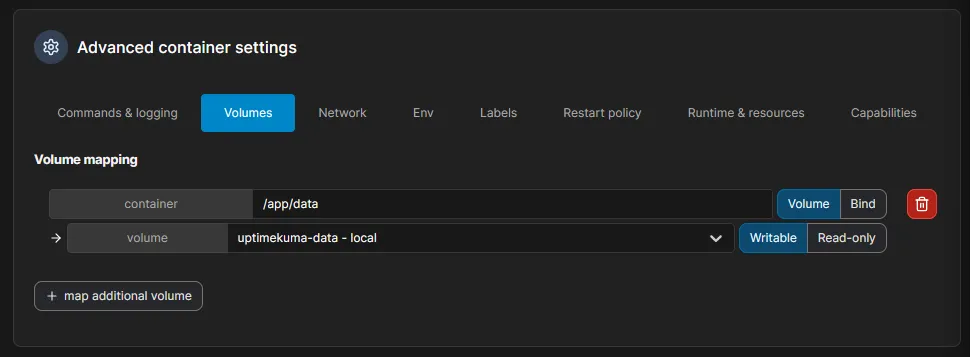

4. Scroll to the Volumes section and map the NFS volume:
   • Set the container path to /app/data.
   • Select the NFS volume created earlier.

Finally, click Deploy the container.

Step 4: Access Uptime Kuma

Once the container is running, navigate to your Docker server’s IP address on port 3000 to access Uptime Kuma. For example:

http://docker-01.qth.nv9p.com:3000

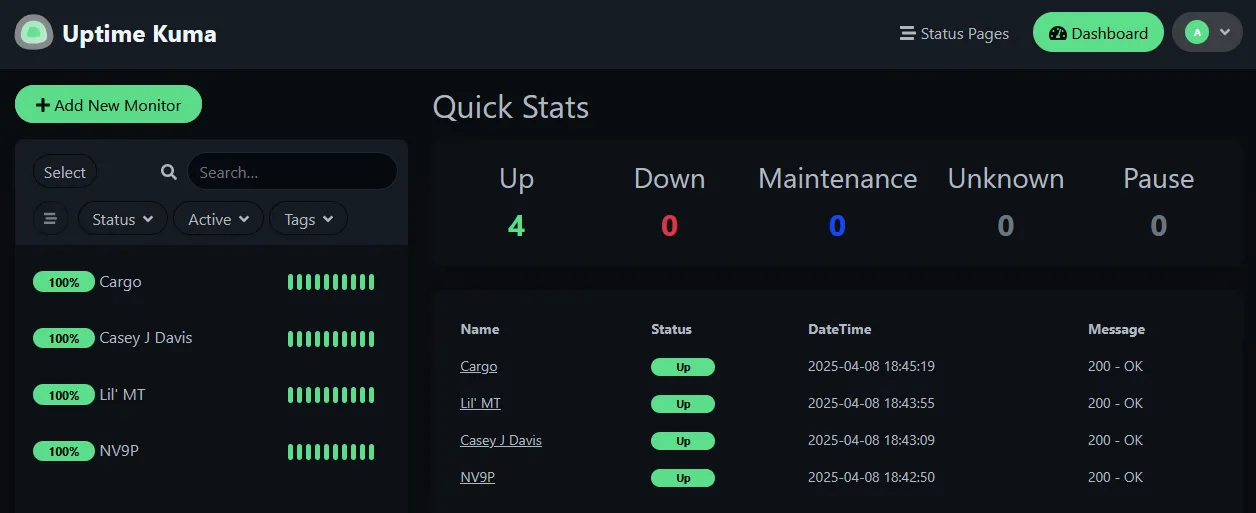

You should see the Uptime Kuma interface, ready for configuration.

Conclusion

By leveraging NFSv4 for persistent storage, you can efficiently manage Uptime Kuma in a Docker container. This setup ensures data persistence and simplifies container management using Portainer. Happy monitoring!
